| Brand Name : | ES |
| Model Number : | ES-NVR604P |
| Certification : | CE, FCC |
| Delivery Time : | 3-5DAYS after the payment confirmed |
| Payment Terms : | T/T,western union,Paypal |

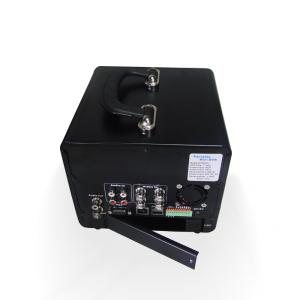

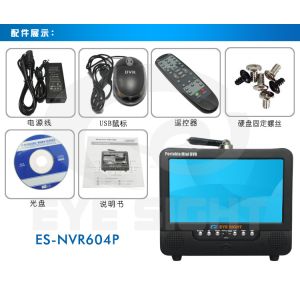

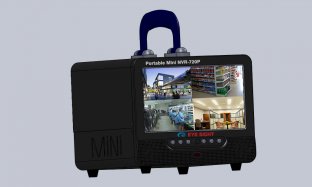

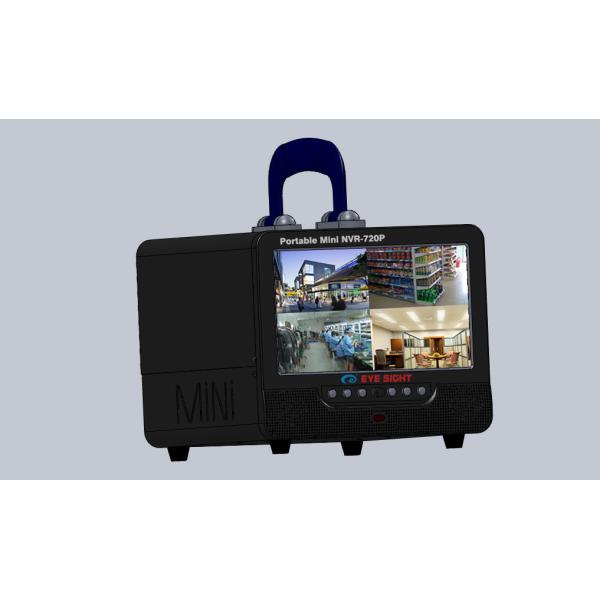

Network Video Server ES- NVR604P
Network function
Feature:
Specification
System | Specification | Parameter |
Operation system | LINUX | |
Interface | Imaging | |
Resource | Realtime recording, playback, internet browsing | |
Image | Display size | 7 inch |
Display | Single / quad | |
TV system | PAL/NTSC | |
Video quality | 720P | |
Playback video quality | 720P/D1/HD1/CIF | |
Recording mode | Manually, alarm, motion detection, timing | |
Local playback | 2ch | |
Video query | Search by time, date, event, channel | |
Video record | Hard disk, remote record, USB/DVD-RW | |
Backup mode | Network, USB/ DVD/RW | |
Video | IP camera input | 4ch |
Video compression | H.264 | |
Video output | 1ch BNC, 1ch VGA, HDMI(support 1920*1080) | |
Video compression | G.711 | |
Talkback | Built-in sound pick up | |
Audio output | 1ch RCA+ built-in speaker | |
Alarm | Alarm input | 4ch |
Alarm output | 1ch | |
Interface | PTZ control | RS-485 |
Network interface | Self-adapt RJ45 100M/1000M | |
USB interface | USB2.0*2 | |
HDD interface | SATA*4 (Support 1 2TB HDD) | |
Power adaptor | DC12V/4A | |
Consumption | ≤20W | |
Working temperature | -10℃~+55℃ | |
Working humidity | 10%~90% | |
atmospheric pressure | 86Kpa~106Kpa |
|
