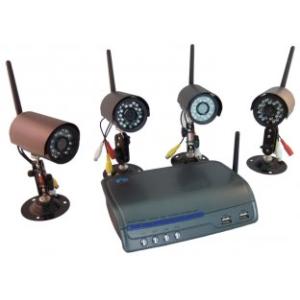

This Network video DVR is a network video server, support recording and capture picture. H.264 compression IP server,
can come with 7 cameras, including wired and wireless channel.
Product Function Introduction
· H.264 Compression IP camera server
· View/take picture by normal mobile phone
· 7 channel video, 4 channel audio
· Frame rate: CIF: 100fps, D1: 25fps
· Display, transfer and record under quad mode
· View by IE browser, no special software required
· Remote record and snapshot control via Internet
· Support motion detection, images can be sent out through alarm e-mails
· Support dynamic and static address
· RS485 PTZ controllable, multi channel alarm input and output
· History recording playback on remote PC
ES-IPS507 IP Camera Server Specification | ||
Compression Standard | H.264 compression | |
Image Resolution | PAL: D1(704x576) / CIF(352x288)/ QCIF (176x144) | |
NTSC: VGA(640x480) / QVGA(320x240)/QQVGA(160x120) | ||
Image Transfer Velocity | PAL: 1-25 frame/s, NTSC: 1-30frame/s | |
Recording port | 1 channel USB2.0 port(main port) | |
Bidirectional audio port | 1 channel USB2.0 port (subaltern port | |
Video Input | 4 routes Wired channel, | |
Video Output (local) | 1 route | |
Audio Output (local) | 1 route | |
Recording Standard | AVI | |
PTZ Control Communicate Plug | RS485 | |
Network Plugs | RJ-45/10-100 Base T | |
Network Agreement | TCP/IP, UDP, ARP, HTTP, DHCP, FTP | |
Motion Detection | user could set alarm area and sensibility | |
Software Upgrade | upgrade automatically | |
Monitor Mode | IE browser | |
Video playback | VS Client | |
Security | password setting: administer, monitor, scrutiny | |
Working Condition | 0 ~ 50, 20% - 80%PH | |
Power Adapter | INPUT: 100 - 240VAC, 50/60Hz, OUTPUT:5VDC/2A | |
power consumption | < 5W | |
Camera C21 specification | ||
TV System | PAL | NTSC |
Validity Pixel | 628(H) x 582(V) | 510(H) x 492(V) |
Image Device | 1/3" Omn Vision CMOS | |
Transmission Frequency | CH 1: 2414MHz； CH 2: 2432MHz； | |
Horizontal Definition | 380TV Line | |
Minimum Illumination | 0Lux | |
Transmission Signal | Audio and Video | |
Transmission Distance in Open Field | 300～500m | |
Working Temperature | -10℃～50℃ | |
Syncronization System | Internal | |
Scanning Frequency(H) | 15.625KHz | 15.734KHz |
Scanning Frequency(V) | 50Hz | 60Hz |
Backlight Compensation | Auto | |
Electronic Shutter | 1/50(1/60)～1/100, 000sec | |
White Balance | Auto | |
S/N Ratio | >48db | |
Gamma Correction | >0.45 | |
Power Adaper | DC12V/1A | |
|
|
